How Much Does It Cost to Build an Aluminum Aircraft Hangar

The overall cost of building an aluminum aircraft hangar typically ranges from approximately $120–400 per square meter (approximately $12–40 per square foot).

For example, common projects include:

Small private aircraft hangar (200–300㎡): Approximately $30,000–100,000

Medium-sized general aviation hangar (500–1,000㎡): Approximately $80,000–350,000

Large business jet or maintenance hangar (1,500㎡and above): Approximately $300,000–1,200,000 or even higher

The actual cost will vary significantly depending on factors such as size, structural type, wind and snow load standards, hangar door configuration, and construction conditions in the installation area.

Why Is There Such a Large Price Difference for Aluminum Aircraft Hangars?

When many people inquire about aircraft hangar quotes, their first reaction is: “Why do some aluminum hangars cost three or four tens of thousands of dollars, while others cost hundreds of thousands of dollars?”

The reason is quite simple. An aircraft hangar is not an ordinary warehouse; it requires higher standards for structural safety, spatial integrity, and long-term stability.

In some private airfields, hangars primarily serve the function of “shelter from the elements”; while at general aviation airports or maintenance bases, the hangar itself is part of the operating system and needs to meet requirements for frequent entry and exit, equipment operation, and safety regulations.

Therefore, the price difference often comes from three core dimensions:

• Size difference: The larger the area and the wider the span, the exponentially higher the structural cost.
• Structural type difference: Different structural forms result in completely different material and processing costs.
• Usage standard difference: Different wind and snow load ratings, enclosure systems, and door system configurations naturally lead to different prices.

Price Reference for Different Sizes of Aluminum Aircraft Hangars

When evaluating the cost of an aluminum aircraft hangar, size is almost the most intuitive and easiest factor to affect the budget. Even for aluminum aircraft hangars, differences in span, height, and area will lead to changes in structural design standards, and significant differences in material usage and construction difficulty. Many projects may seem to have similar budgets in the early stages, but once the size is determined, the final price often fluctuates significantly.

Small Aluminum Aircraft Hangar

The price range typically falls between $30,000 and $100,000, depending on the configuration level and structural form. This size of aluminum aircraft hangar is mostly used by private aviation enthusiasts or small flying clubs.

Common areas range from 200–300㎡, with a span of approximately 12–18 meters and a height of 5–7 meters, which is sufficient to meet the basic needs for light aircraft entry and exit. The overall design is practical, focusing on providing a stable and safe parking space for the aircraft.

With a basic configuration, including only the main structure and basic enclosure system, the budget can often be controlled within the $30,000–$70,000 range; if additional features such as motorized hangar doors, a more complete enclosure system, or simple insulation are added, the overall investment usually rises to $50,000–$100,000. In actual projects, A-frame or Hoop Building structures are more commonly used, for simple reasons—the structure is mature, the cost is relatively friendly, and maintenance is easier in the long run.

For this type of hangar project, price itself is not the only risk. A more common problem is “oversizing the dimensions and over-specifying the configuration,” ultimately leading to a budget exceeding actual needs. Matching the aircraft size and usage scenario is often more important than simply pursuing a larger space.

Medium-Sized Aluminum Aircraft Hangar

The overall budget for medium-sized aluminum aircraft hangars typically ranges from $80,000 to $350,000, with significant differences between different configuration options. These projects commonly have an area of ​​500–1,000㎡, a span of 20–30 meters, and a height of 7–9 meters, and are more often found at general aviation airports or business jet parking areas. In addition to basic parking functions, many projects also include space for equipment storage or simple maintenance.

If only a basic configuration is used, the overall cost is usually in the $80,000–$180,000 range; when the project incorporates higher-standard hangar door systems, insulated enclosure structures, or higher-grade structural safety standards, the cost can easily rise to $150,000–$350,000. Large-span motorized hangar doors, in particular, are often underestimated in the initial stages but account for a significant portion of the final budget. At this scale level, structural forms begin to have a more significant impact on costs. Compared to small hangars, medium-sized projects more often utilize TFS or Metal Truss structures. Although the initial investment is higher, they usually better meet the actual operational needs of general aviation airports in terms of aircraft scheduling convenience, spatial integrity, and long-term stability.

Large Aluminum Aircraft Hangars

The overall cost of large aluminum aircraft hangars typically ranges from $300,000 to over $1.2 million, depending on the structural span, usage standards, and degree of customization. These projects are mostly used for maintenance bases or comprehensive aviation service centers, with a building area generally ranging from 1,500 to 3,000 square meters, a span of 30 to 50 meters, and a height sufficient to accommodate the maintenance and entry/exit requirements of medium to large aircraft.

Under relatively basic configuration options, the overall budget is usually concentrated in the $300,000 to $600,000 range; if the project involves higher-level wind and snow resistance standards, more complex large hangar door systems, and more complete enclosure and supporting facilities, it is not uncommon for the total cost to rise to $600,000 to $1.2 million or even higher. In actual projects, the difficulty of construction organization and the complexity of on-site conditions often become important variables affecting the final cost.

For large hangar projects, whether the initial planning is sufficient often directly determines whether the later budget is controllable. If no room for future expansion or functional upgrades is reserved during the planning stage, the cost of later structural adjustments or renovations is often far higher than planning the solution properly from the outset.

Price Differences Based on Aluminum Aircraft Hangar Structure Type

Beyond size, the type of structure itself is one of the core factors determining the cost of an aluminum aircraft hangar. Even with similar building areas, differences in material specifications, force systems, processing complexity, and construction difficulty among different structural solutions will be directly reflected in the final price. In actual projects, structural selection is often the key point that leads to price differences.

Based on common market projects, aluminum aircraft hangars can be roughly categorized into a clear price gradient based on structure type: Hoop Building < A-frame < Polygon < TFS < Metal Truss. Below, we provide price range references closer to actual engineering projects, based on different structural forms.

A-Frame Aluminum Hangar

In terms of cost, A-frame aluminum aircraft hangars are generally considered a cost-effective type of structure. For a typical medium-sized hangar of 500–1,000㎡, the overall cost with basic configuration usually falls within the $90,000 – $220,000 range; if high-standard hangar doors, insulation systems, or higher wind and snow resistance ratings are required, the overall budget may increase to $180,000 – $350,000.

The A-frame structure features a mature double-pitched roof and clear load paths, making it highly adaptable to different climate environments.  Both the design and construction systems are very mature, resulting in relatively stable and easily controllable unit area costs. For general aviation airports or private hangar projects with long-term fixed use, this type of structure is often a “safe and reliable choice.”

From a long-term perspective, the A-frame doesn’t aim for extremely large spans, but it achieves a good balance between safety, durability, and maintenance costs. If the project doesn’t require exceptionally large unobstructed internal space, the A-frame is often the preferred option that balances budget and functionality.

TFS Hangar

Under the same area conditions, the cost of a TFS column-free aluminum aircraft hangar is usually significantly higher than that of an A-frame. For a hangar of 800–1,500㎡, the overall budget is mostly concentrated in the $180,000 – $450,000 range; if the span is further increased and the hangar door system specifications are higher, it is not uncommon for the total project cost to reach $300,000 – $700,000.

The biggest advantage of the TFS structure is the absence of internal columns, allowing for smoother aircraft entry, maneuvering, and maintenance operations. This is especially important in business jet hangars and maintenance hangars. However, the absence of columns means higher structural design standards, larger component cross-sections, and more complex joints, all of which directly increase material and processing costs. From a long-term operational efficiency perspective, although TFS (Tension Fabric Structure) requires a higher initial investment, its advantages in ease of use, space utilization, and operational efficiency often gradually demonstrate their value during the operational phase, making it suitable for projects with high demands on hangar functionality.

Polygon Hangar

The cost of a polygonal aluminum aircraft hangar is typically between that of an A-frame and a TFS. For projects of 600–1,200㎡, the overall cost of a basic design is generally around $140,000 – $320,000; if customized facade design, more complex node forms, or high-end enclosure systems are involved, the total budget may rise to $250,000 – $500,000.

Polygon structures have advantages in visual distinctiveness and spatial integrity, making them suitable for projects with certain requirements for the overall image of the airport. These hangars require more detailed stress analysis during the design phase, have more nodes, and are more highly customized, so the overall cost is usually higher than that of the more standardized A-frame.

From practical engineering experience, polygonal hangars are more suitable for scenarios where “image + function are equally important,” rather than projects that simply pursue the lowest construction cost. If the airport has a strong public image component, the investment in this type of structure is more easily accepted.

Hoop Building Hangar

Among all common structures, the Hoop Building is usually the option with the lowest initial investment. The overall cost of small to medium-sized arched aluminum hangars (300–800㎡) mostly falls within the $60,000 – $150,000 range, making them suitable for projects with limited budgets or tight construction schedules.

Arch structures are quick to construct and have relatively low foundation requirements, so they are widely used in temporary support, short-term expansion, or remote airport locations. For the transitional need of “simply having a hangar,” it can be put into use quickly with less initial pressure.

However, from a long-term cost perspective, Hoop structures are generally inferior to standardized aluminum aircraft hangar structures in terms of durability, interior comfort, and flexibility for future modifications. If the project is intended for long-term use, choosing an arch structure simply to lower the initial budget may result in higher overall costs in the long run.

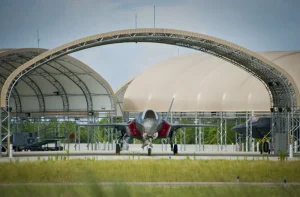

Metal Truss Hangar

Metal truss aircraft hangars typically represent the highest specifications and highest cost level. For projects of 1,500–3,000㎡ and above, the overall cost usually falls within the $350,000 – $900,000+ range; if it involves extra-large spans, heavy aircraft maintenance, and high-level safety standards, it is not uncommon for the budget to exceed one million US dollars.

The advantage of truss structures lies in their strong overall rigidity and high structural safety redundancy, making them suitable for extra-large spans and high-intensity use scenarios, such as maintenance bases or core operational hangars. Their design, fabrication, and construction organization are significantly more complex than conventional structures, requiring a higher level of professional expertise from the engineering team.

From a long-term operational perspective, the investment in truss structures reflects the value return of “long-term stability and safety of use,” rather than just a comparison of initial construction costs. For aviation projects with long operating cycles and high usage intensity, this type of structure is often more strategically significant.

5 Key Factors Affecting the Final Price of an Aluminum Aircraft Hangar

In addition to the size and type of hangar chosen, the final price of a hangar is also affected by the following five factors:

• Wind and snow load standards: Different national standards vary significantly, with higher standards meaning thicker profiles and more complex joints.
• Enclosure system selection: Ordinary color steel plates vs. insulated sandwich panels, the price difference can be as much as 30%–50%.
• Hangar door system: Large electric doors are often a cost “black hole,” with a single door system potentially accounting for 10%–20% of the total budget.
• Foundation conditions: Soft soil foundations and permafrost regions will significantly increase foundation construction costs.
• Installation location: For remote areas and overseas projects, transportation and installation costs are often underestimated.

Therefore, even if you choose the same size and type of hangar, the price may vary due to different locations and required standards.

How to Control the Budget Within a Reasonable Range Before Construction?

Many projects that exceed the budget are not due to “overpaying,” but rather unclear requirements in the early stages. For example:

The initial expectation was for parking only, but maintenance requirements were added later.

Ignoring future expansion leads to higher costs for subsequent construction.

Clearly defining the dimensions, structural type, and future expansion needs during the planning phase is usually more cost-effective than simply trying to lower the unit price.

Conclusion

From small private hangars costing $30,000 to large maintenance hangars costing millions, the price range for aluminum aircraft hangars is very wide.

What truly makes the difference is never the “material itself,” but rather the structural form, usage standards, and project scope.

If you already have a general idea of the aircraft type, site dimensions, or budget range, you can actually obtain a relatively accurate cost estimate in the early stages of the project, which is more meaningful than blindly comparing unit prices.

As a professional manufacturer of aluminum aircraft hangars, Gaxtent provides one-stop services from design and structural selection to production and delivery.  We offer A-frame, TFS large-span, polygon, and customized hangar solutions, providing tailored cost-optimization plans based on different aircraft types, airport conditions, and usage scenarios.

If you are planning an aluminum aircraft hangar project, please contact us to receive size recommendations and budget estimates that best suit your specific needs.
